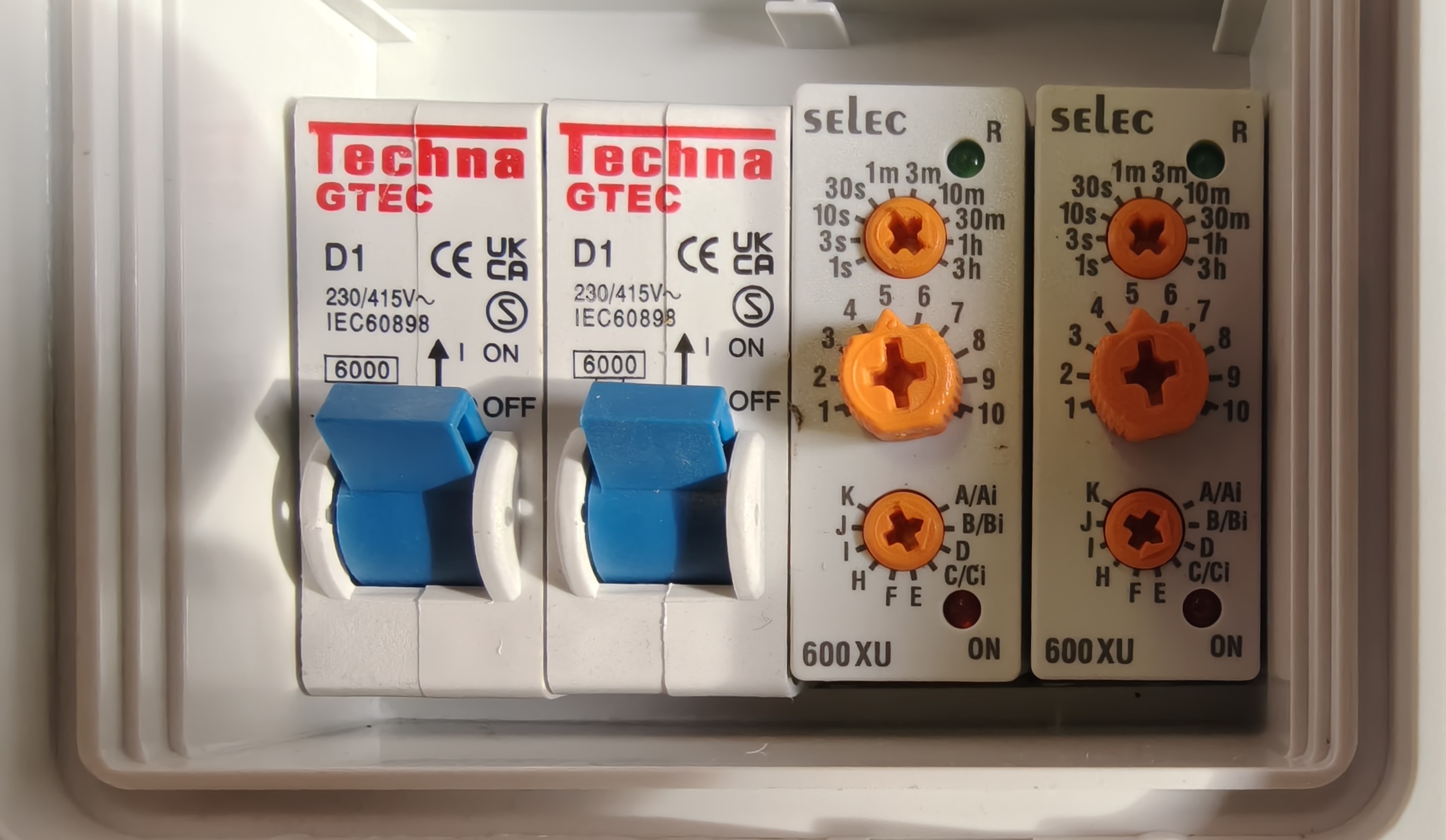

The timers can sometimes break due to usage, water or just wear and tear.
Please see the video below on how to change them out.

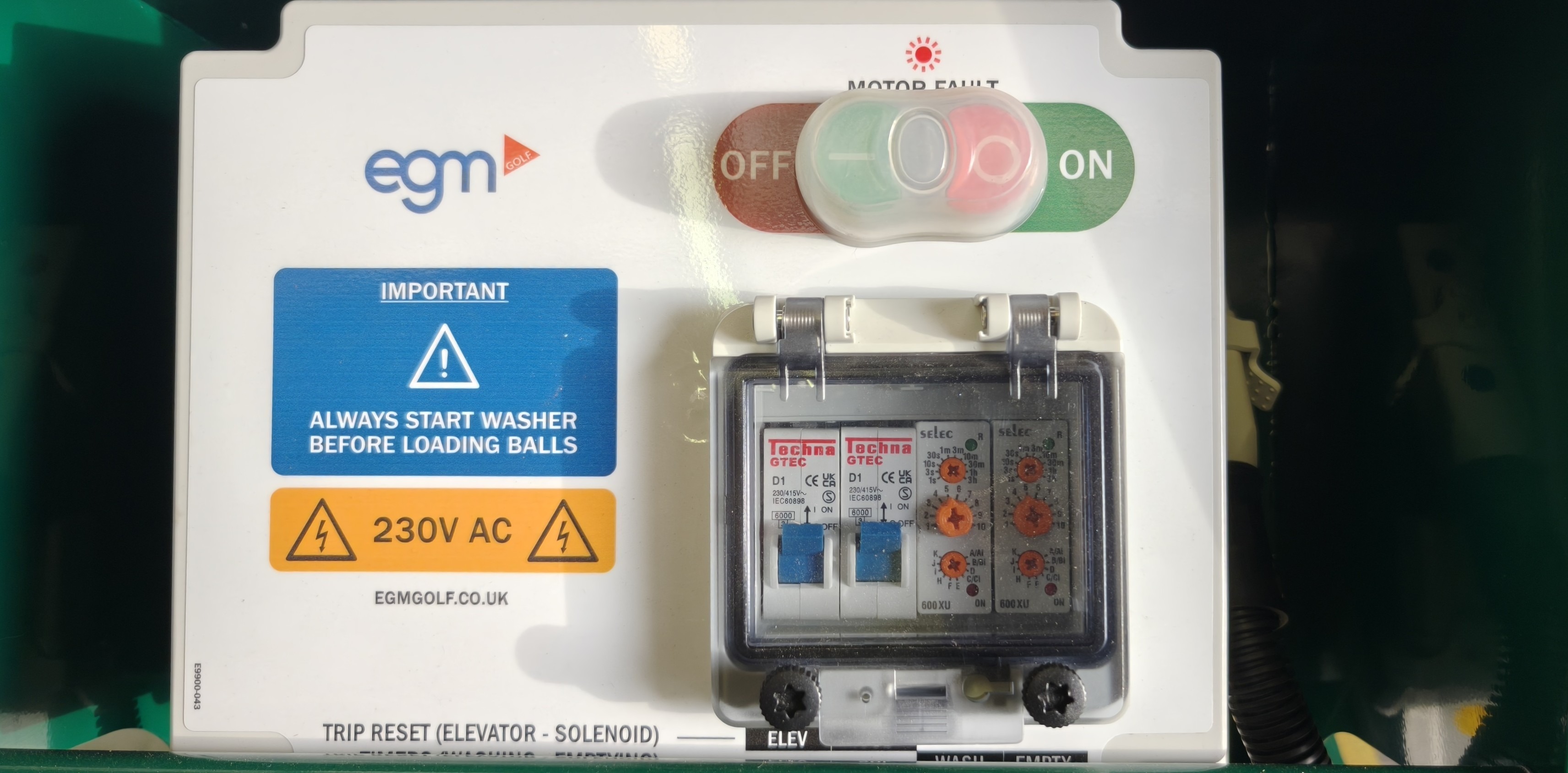

- Make sure all power is turned off.
- Remove the 4 screws (1 in each corner)
- The front panel will then flip down.

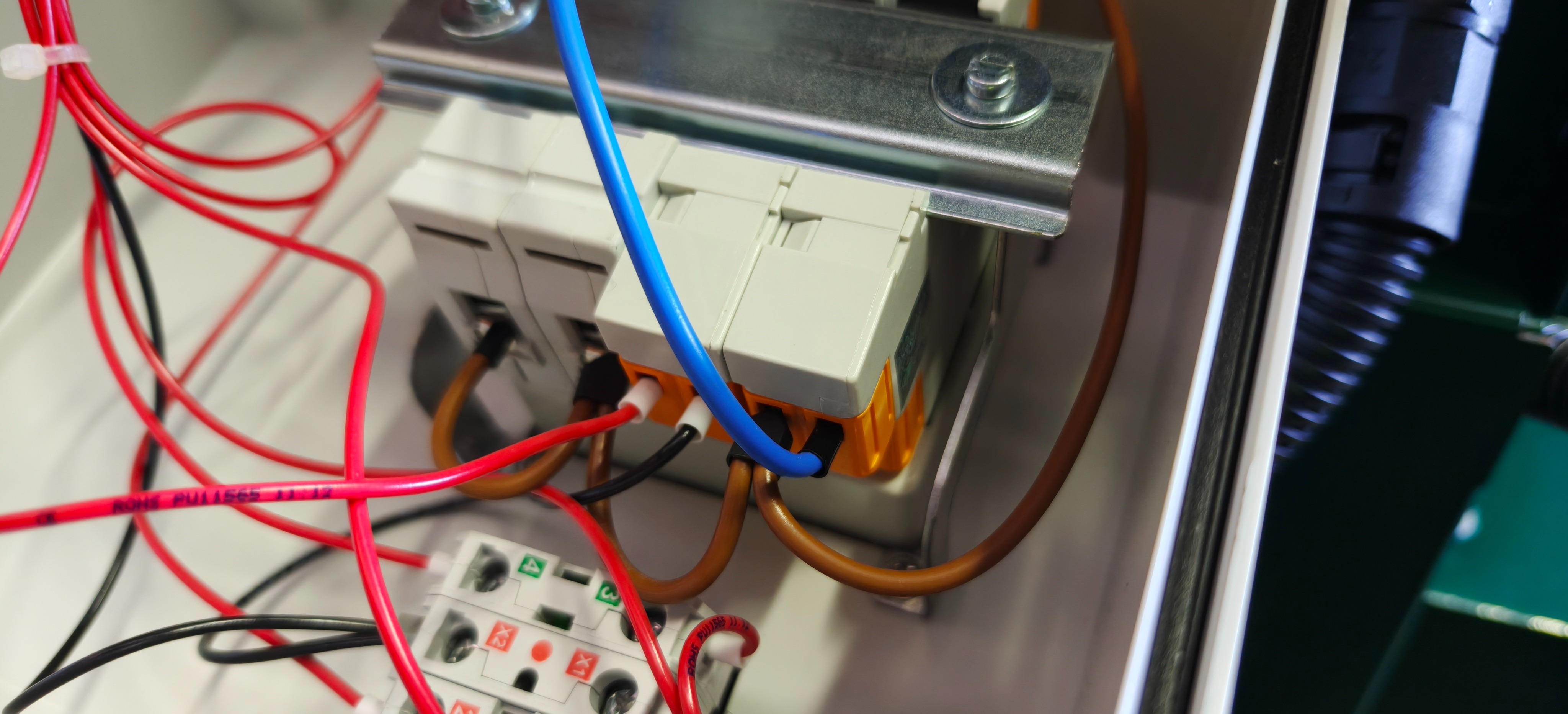

- You can now access the silver rail the switches are on. Take that off and then access the switches
- Undoing the terminal screws for the wires you can remove each wire and place into the new unit.
- Re-seat everything back to where it was and then test again.
 |  |
